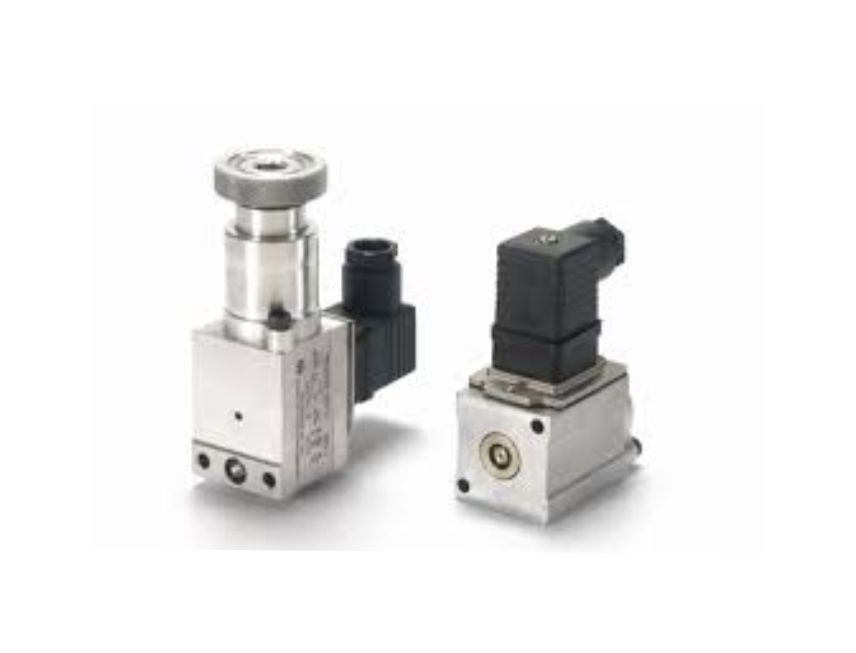

Pressure Switch 1PS
Non adjustable differential type. Spring loaded sealed piston construction. Encapsulated design for protection against dust.
Product Description
Six pressure ranges available, which can be adjustable upto 10, 50, 100, 200, 350 and 420 bar.
Transparent plug-in connector is available with LED.
Technical Specifications :
Construction …. Spring loaded sealed piston type.
Mounting style …. Subplate mounting.
Interface …. Factory standard.
Mounting position …. optional.
Hydraulic medium …. Mineral oil.
Viscosity range …. 10cSt to 100 cst.
Oil cleanliness requirement …. As per ISO 4406 Code 20/18/15 or better.
Max operating pressure …. Refer Table no 1.
Pressure range available …. Adjustable upto 10, 50,100, 200, 350 and 420 bar.
Switching pressure differential …. Refer graph.
Switching Frequency …. 80 Cycles / min.
Life …. 1 million cycles minimum.
Electrical rating …. UL / C – UL rating … 6A, 125 / 250 VAC. EN / EC rating … 6(3)A, 250 V ~ 5E4 T85, u approved.
Electrical connector …. Plug – in connector conforms to DIN 43650, ISO 4400.
