LCS 02
We are engaged in offering a comprehensive range of LCS 02 Series to the clients. Our customers can avail these products in different specifications from us.
Product Description

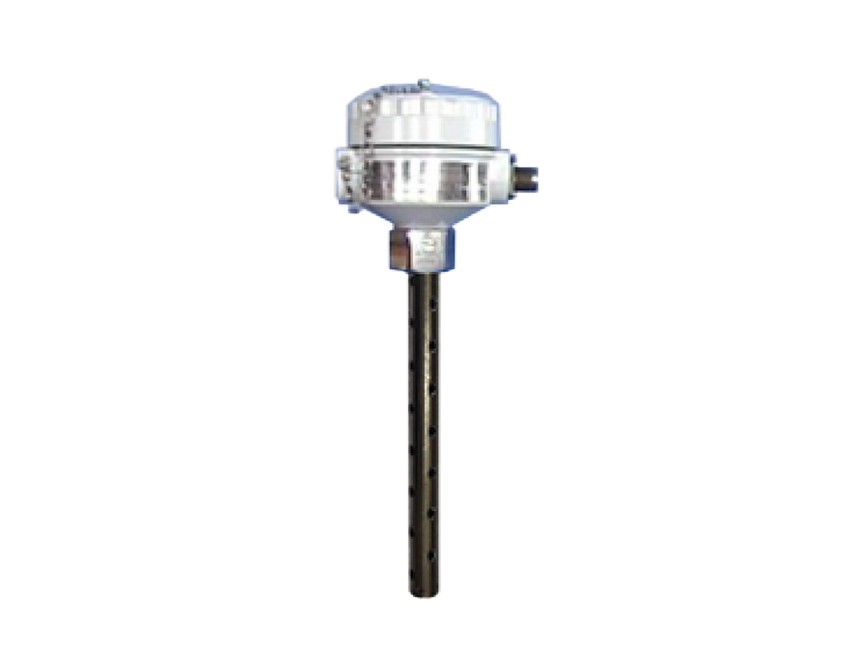

LCS 02 Series
Description :
Electronet’s series LCS 02 are capacitance type level switch. The probe is based on properties of capacitor. Vessel wall & probe forms two electrodes. If vessel is of non conductive material, the probe will be double rod type. The distance between electrode & surface area of electrodes remain unchanged. The variable ¡s the depth of the material being measured which represents the dielectric constant between two electrodes. Air & vacuum have relative dielectric constant as 1 & that of liquids, ¡t is greater than 1. The capacitance of the capacitor therefore depends on how much material lies between the probe & vessel wall i.e. whether the probe is covered with or free from material. The capacitor changes with change in level of the material & provides switching output at desired preset level.
