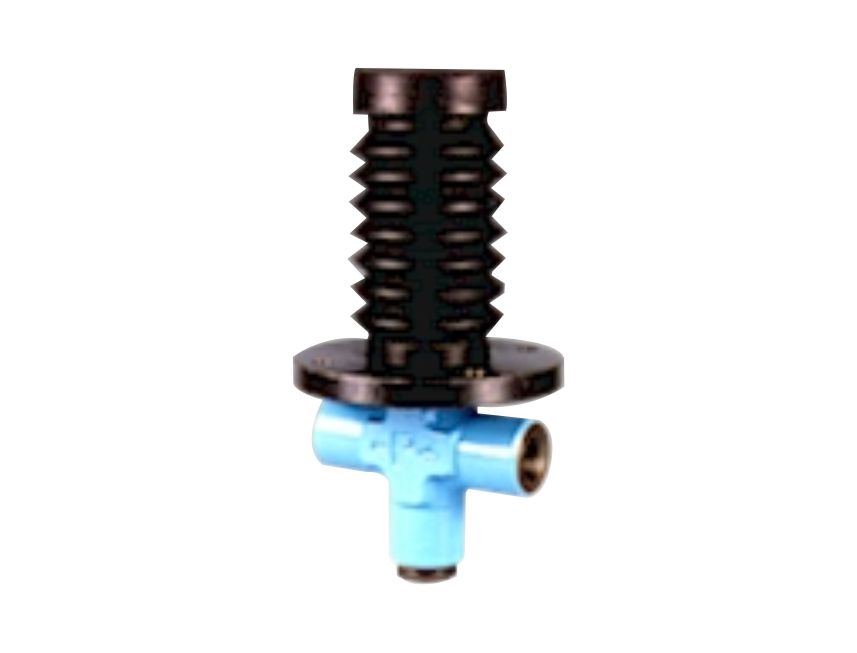

Foot Pump (Discontinued) FP
Heavy duty construction with hardened and ground plunger. Both suction and delivery valve seats are replacable. Intended for supply of lubricating oil or pilot pressure.
Product Description
Technical specification :
Construction ……. Plunger type.
Direction of flow ……. As per hydraulic symbol.
Flow handling capacity ……. 2.35 cc/stroke.
Operating pressure …….. 35 bar.
Operating force at 25 bar …….300 N.
Max. suction pressure …… 100 mm of Hg.
Viscosity range …….. 10 cSt to 380 cSt.
Fluid temperature range …….. -10 °C to +80 °C.
Fluid cleanliness requirement …….. As per ISO 16/13.
Mass ……..0.9 Kg.
