CVC-2RS

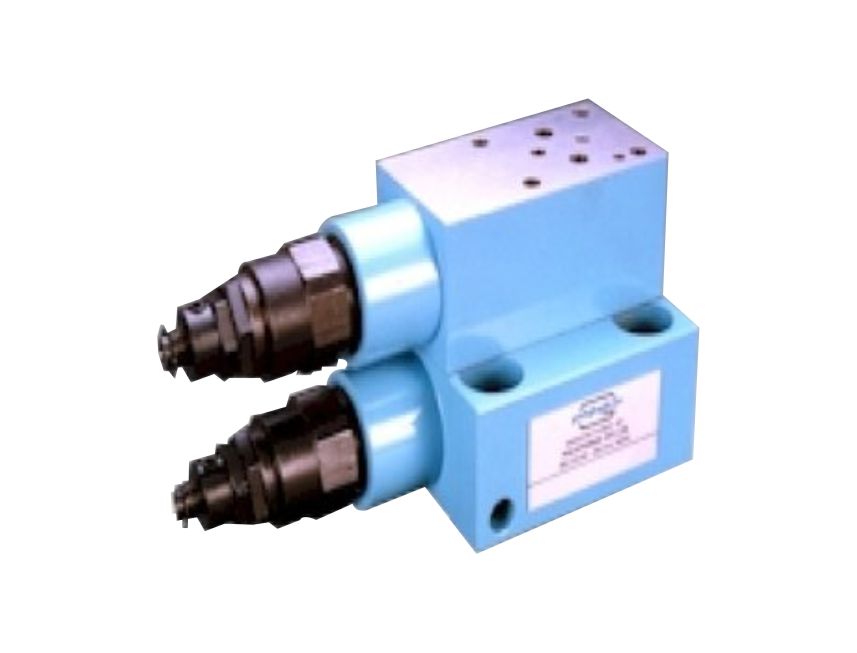

The Covers CVC*2RS are designed to hold Polyhydron make 2 port slip-in cartridge valves
Product Description
Model CV*** in the cavities machined as per ISO 7368, and are meant to provide duel pressure Pilot operated Relief function, using combination of a Slip-in Cartridge having a poppet ratio of 1:1, and two Relief valves, selectable by means of energizing a solenoid valve mounted on it.
Please note that difference in the pressure setting between the 1st Relief valve and the 2nd Relief valve (as marked in the circuits below) must be minimum 10 bar; 2nd Relief valve being set at lesser pressure of the two. By using a Double solenoid valve as shown in the circuit, an additional unloading function can also be achieved by the cover.
