Cartridge Valves
We are engaged in offering a comprehensive range of Products to the clients. Our customers can avail these products in different specifications from us.
Product Description

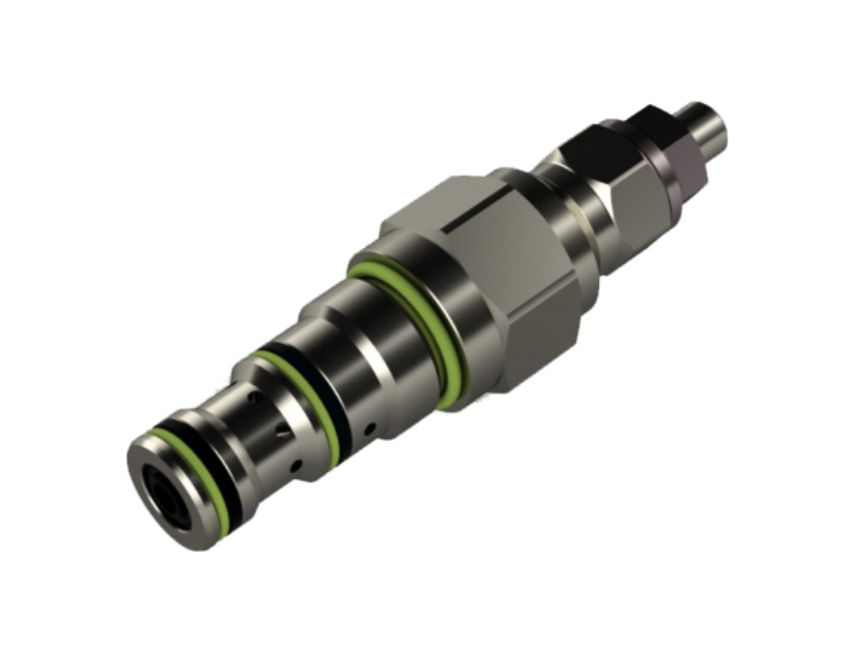

YC Series Load Holding Cartridge Valves :
Load holding cartridge valves with internal and external pilot are used to control overrunning load, The check valve allows free flow from the directional valve (port 2) to the load (port 1) while a direct-acting, pilot-assisted relief valve controls flow from port 1 to port 2. Pilot assist at port 3 lowers the effective setting of the relief valve at a rate determined by the pilot ratio.
Features :
* 3:1 pilot ratio with adjustable setting.
* Maximum operating pressure 350 bar.
* Minimum setting pressure 35 bar.
* Maximum flow rate 60 lpm.
* Maximum valve leakage at reseat : 5 drops/minute.
